Multi-Level AVR function under utility mode to protect connecting devices/loads.
System Introduction
◆ Full-digitized control with comprehensive monitoring and protections.
◆ Multi-Level AVR function under utility mode to protect connecting devices/loads.
Product Features
◆ MCU Controlled ◆ Built-in Intelligent Charger ◆AVR Function
◆ Auto-Restart ◆ Offline Charging ◆Modified Sinewave
◆ Cold-Start ◆Optional USB/RS-232 and RJ-11/RJ45 ◆LCD Screen Optional
Compatible Applications/Loads

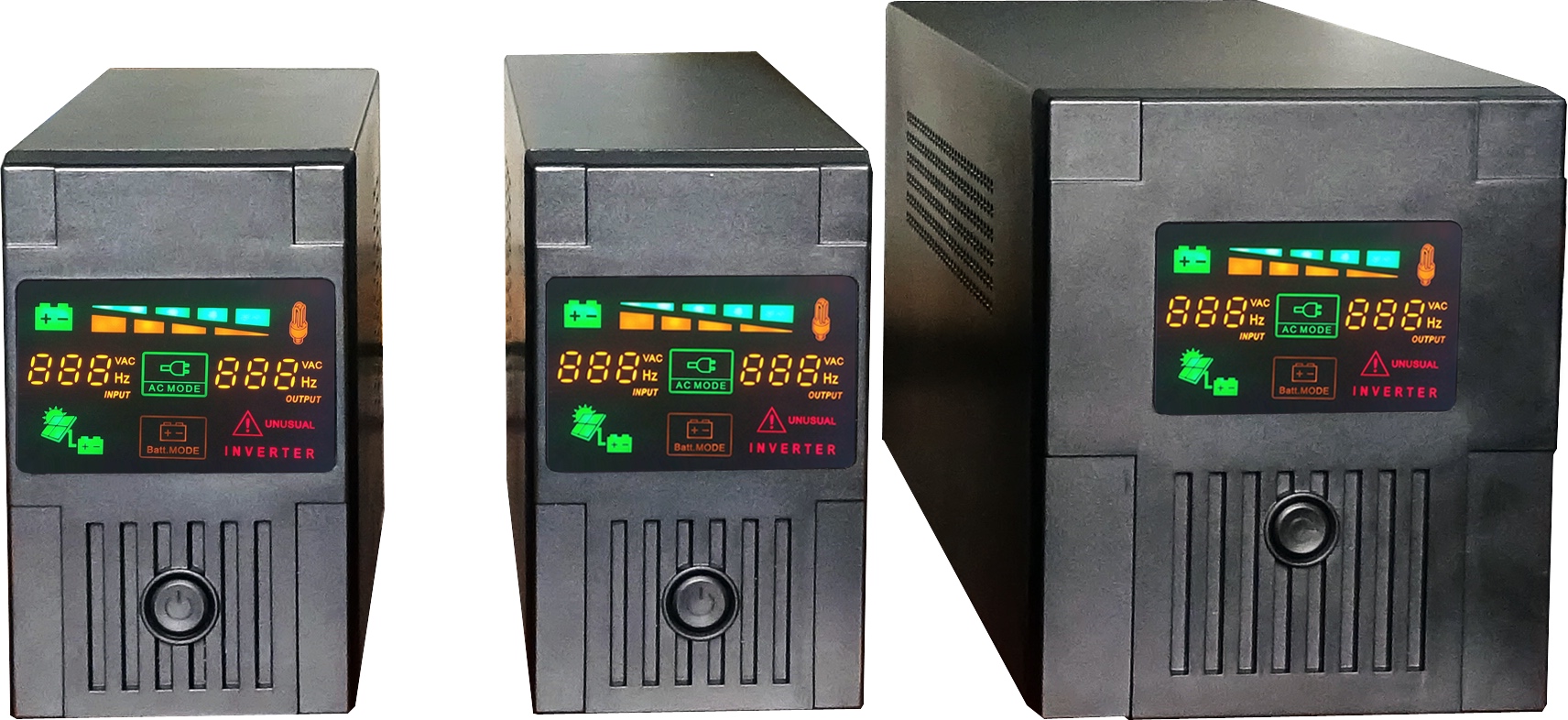

SB Series UPS can be used as office devices backup power,PCs,POS machine,SOHO,or other small security devices.
| Capacity | 400VA/240W | 600VA/360W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W |
| Host Machine Specification | |||||||
| UPS Structure | Line-interactive Design | ||||||
| Protection Function | Overload;Short-Circuit;Over Temp;Utility Voltage High/low;BAT Voltage High/low(Shutdown Protection) | ||||||
| Overload | ＞110% Alarm Shutdown | ||||||
| Surge/Short-Circuit Protection | Input Fuses Protection (AC Mode),Circuit Auto Protection(BAT Mode) | ||||||
| Display | LCD Display,UPS Operational Status,BAT Fault,other fault infformation | ||||||
| Alarm | Utillity Power Fault,BAT Low,Overload,UPS Fault | ||||||
| Mute | Auto | ||||||
| Temperature | 0-40℃ | ||||||
| Humidity | ＜95% Non-Condensing | ||||||
| Input Specification | |||||||
| Input Voltage | 110V/120Vac or 220/230/240Vac | ||||||
| Input Voltage Range | 67-137Vac or 135-275Vac | ||||||
| Input Frequency Range | 50Hz±10% | ||||||
| Output Specification | |||||||
| AVR | Intelligent Auto AVR Function | ||||||
| Output Voltage(AC mode) | 220Vac±10% | ||||||
| Output Voltage(BAT mode) | 220Vac±10% | ||||||
| Output Freq(BAT mode) | 50Hz±10% | ||||||
| Output Waveform | Modified Sine wave(BAT Mode) | ||||||
| AC-DC Switching Time | 4-6ms | ||||||
| BAT Parameters | |||||||
| Type | Sealed Lead-Acid Maintenance Free Battery | ||||||
| Rated Voltage/Units | 12V/4Ah*1Unit | 12V/7Ah*1Unit | 12V/9Ah*1Unit | 12V/7Ah*2Unit | 12V/7Ah*2Unit | 12V/9Ah*2Unit | 12V/9Ah*2Unit |
| Charging Time | 4-6Hours to 90% | ||||||
| Backup Time | 3-10minutes | ||||||
| Communication Port | |||||||
| Communication Port | Support Windows XP/Vista,Windows 7/8,Linux,Unix,and MAC | ||||||
| Physical Specification | |||||||
| Size mm(W*D*H) | 101*297*142 | 140*370*165 | |||||
| Net Weight Kg | 3.5 | 4.2 | 4.9 | 8 | 9.6 | 11.1 | 11.5 |
|
|
